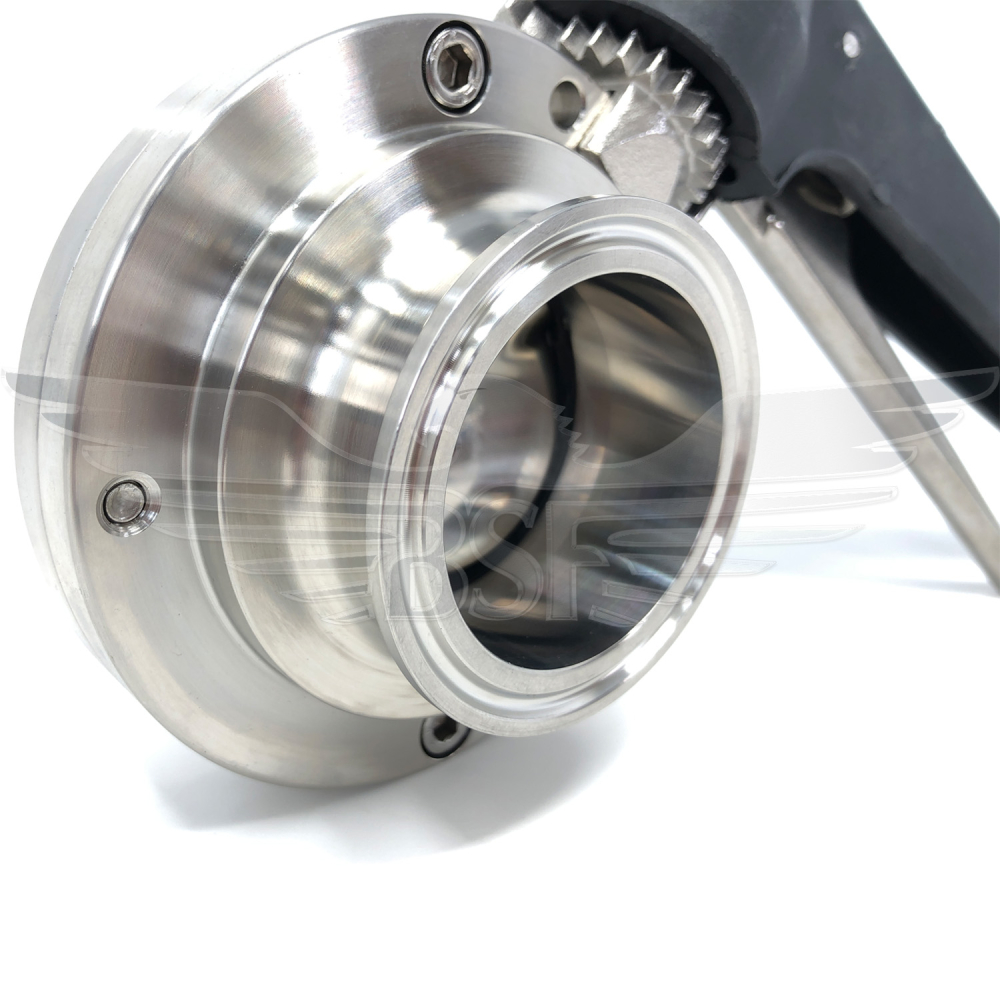

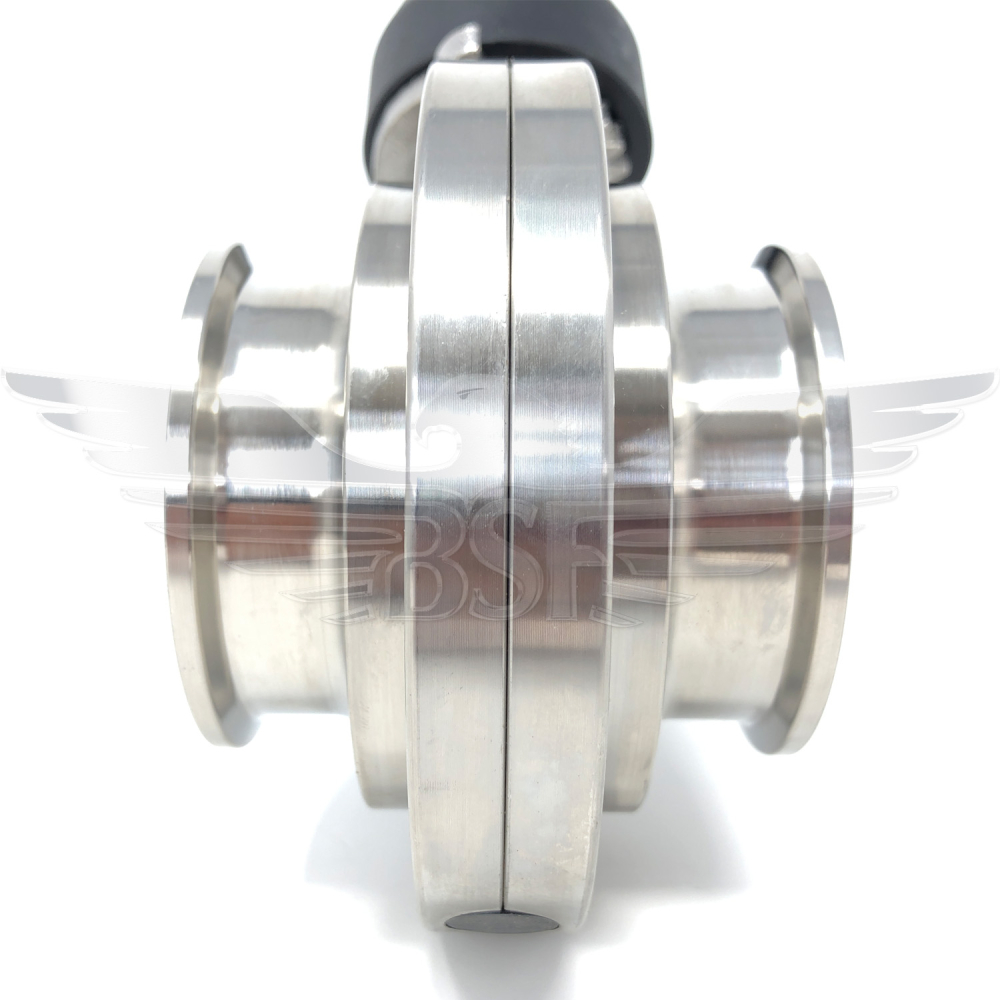

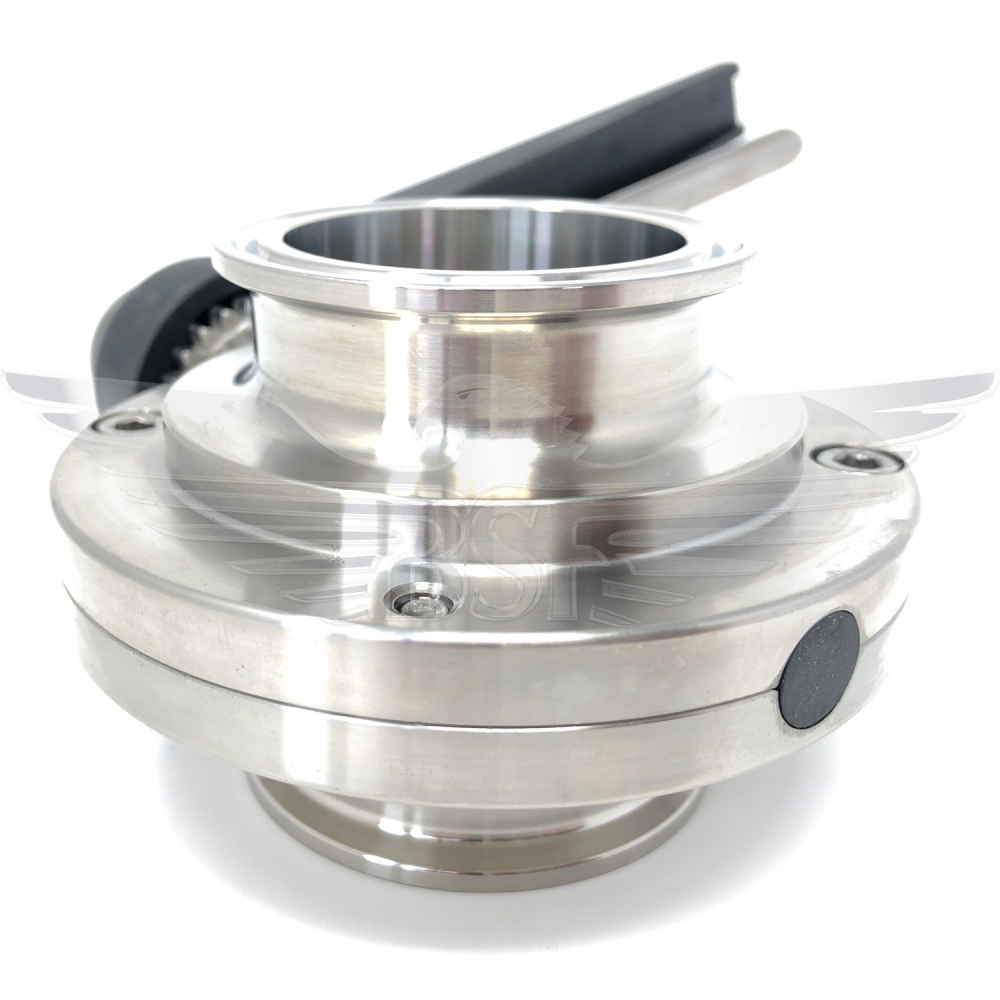

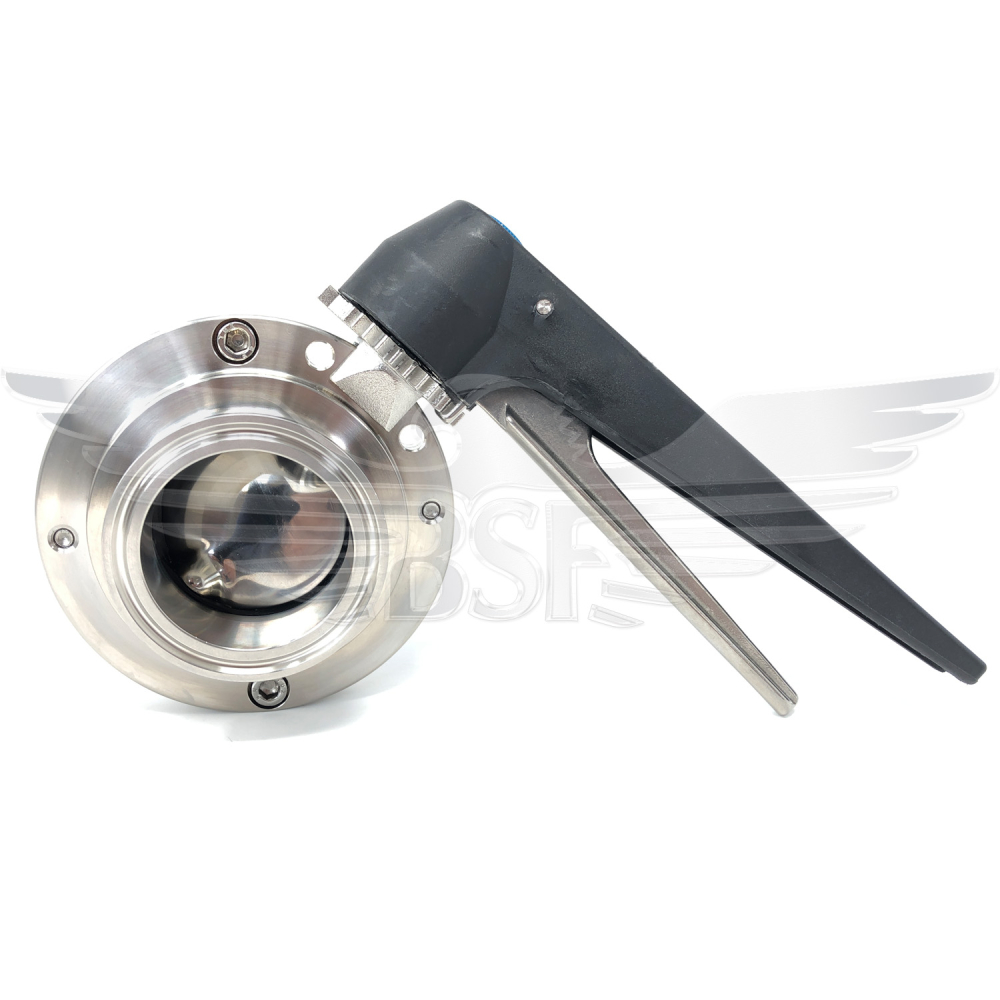

2Inch CLAMP END 'BSF' B'FLY VALVE 316L - EPDM SEAL, BLACK HANDLE
T/C Butterfly Valve
TC Butterfly Valve 2
TC Butterfly Valve 3

2" CLAMP END 'BSF' B'FLY VALVE 316L - EPDM SEAL, BLACK HANDLE


Stock Code: 2100895
In Stock
£62.89

Descriptions

  • Available from 1″ Tri-Clamp Ferrule – 4″ Tri-Clamp Ferrule.
  • Tri-Clamp Ferrule ended configuration.
  • Fully machined product. (If machined not available, we can weld ferrules to plain ended valves. Note: Face to Face dimension will change)
  • EPDM seal as standard – Viton & Silicone seals also available.
  • 12 position plastic handle – c/w 304 stainless steel gripper bar as standard.
  • For use upto 150psi.
  • Drive head 8mm x 12mm.

Full actuation and control packages available from stock.

Size2"
Grade316/L
Product GroupButterfly Valve
Standard3A/Tri-Clamp
Seal MaterialEPDM
Seal ColourBlack
FinishMachined
Disc Drive Head8mm x 12mm
Additional InfoNylon Reinforced Handle
Handle Included?Yes
