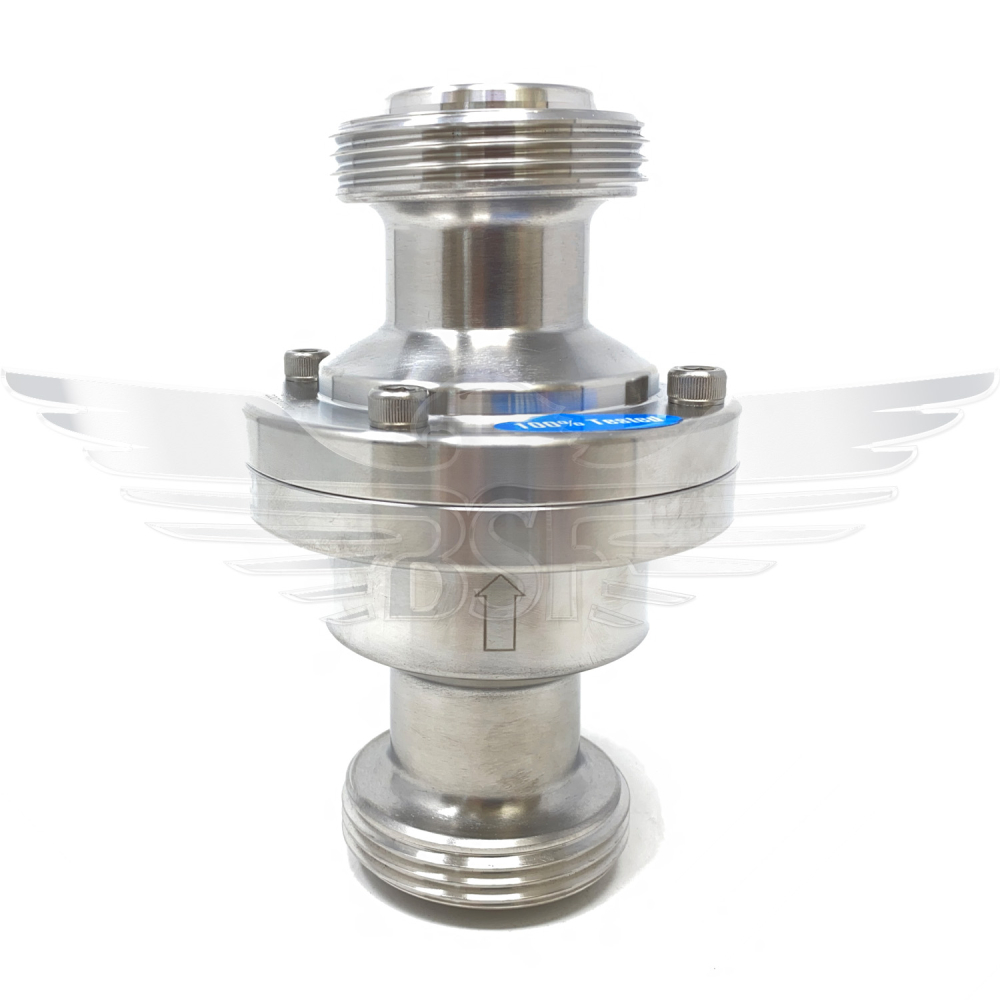

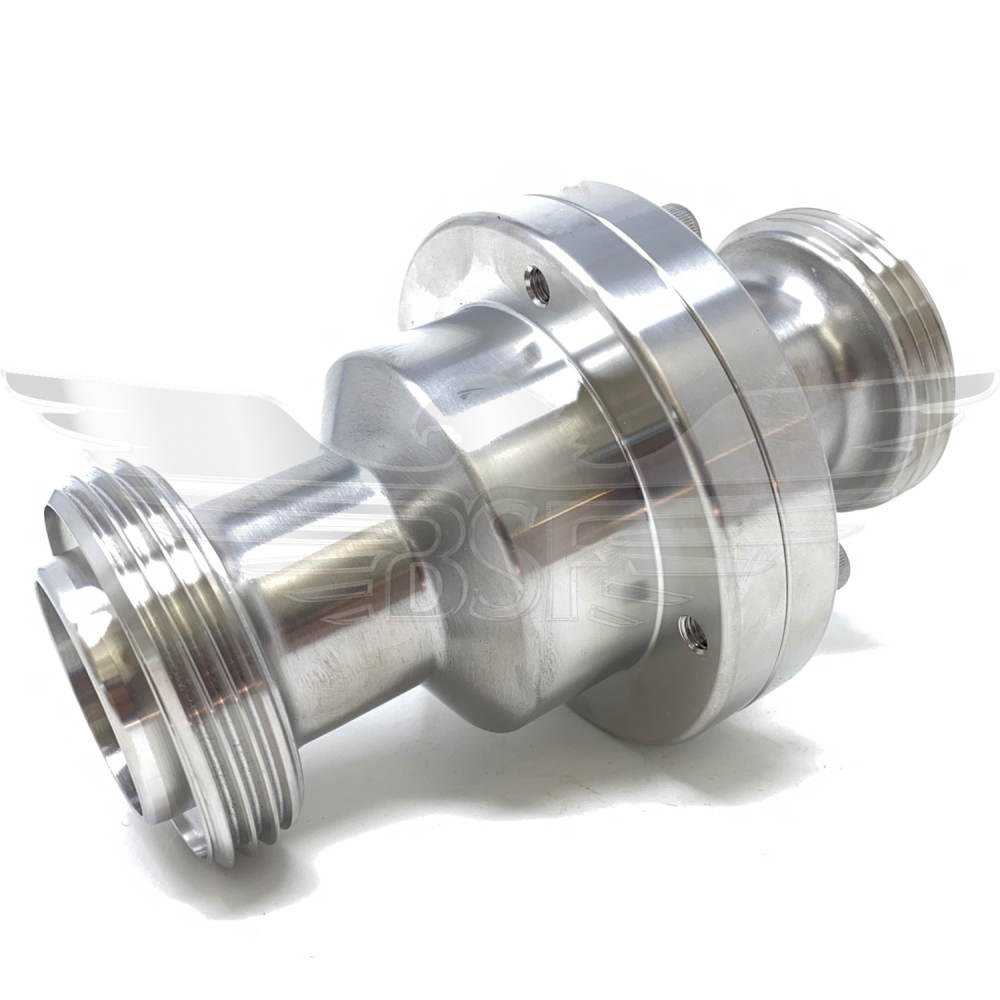

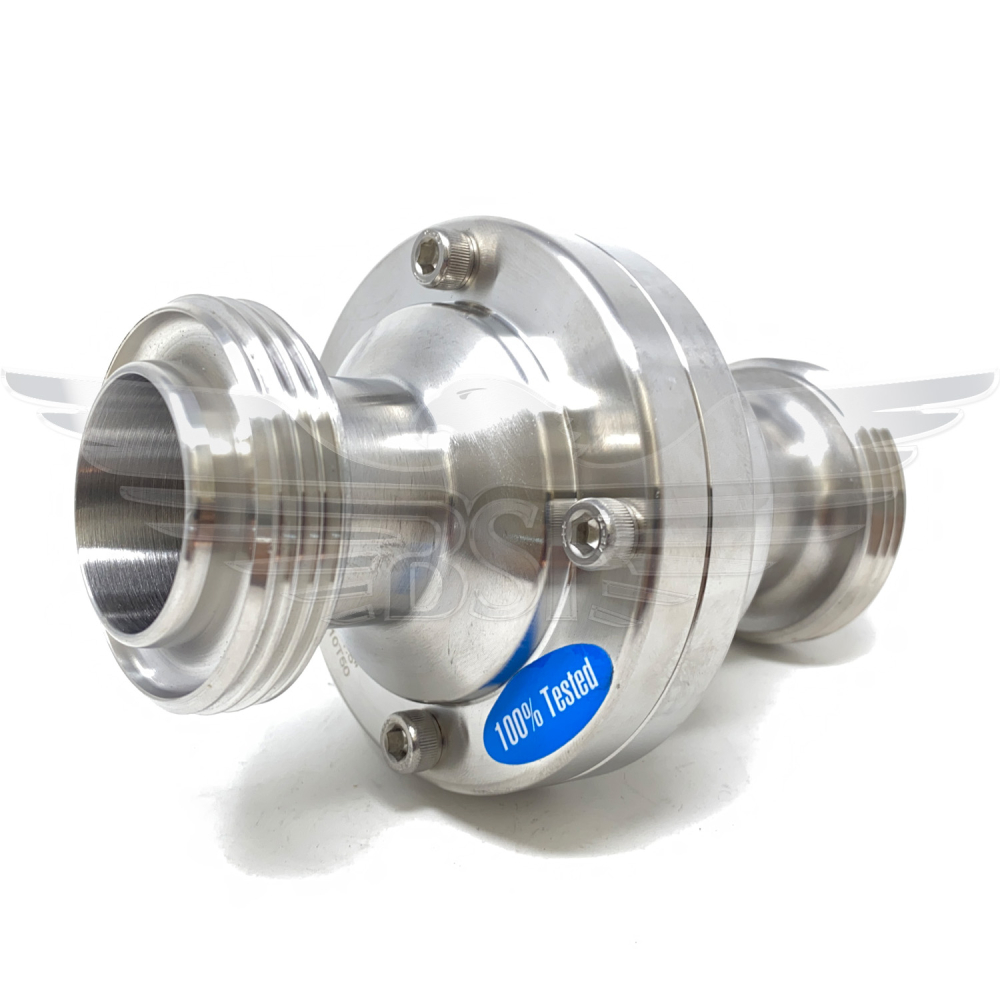

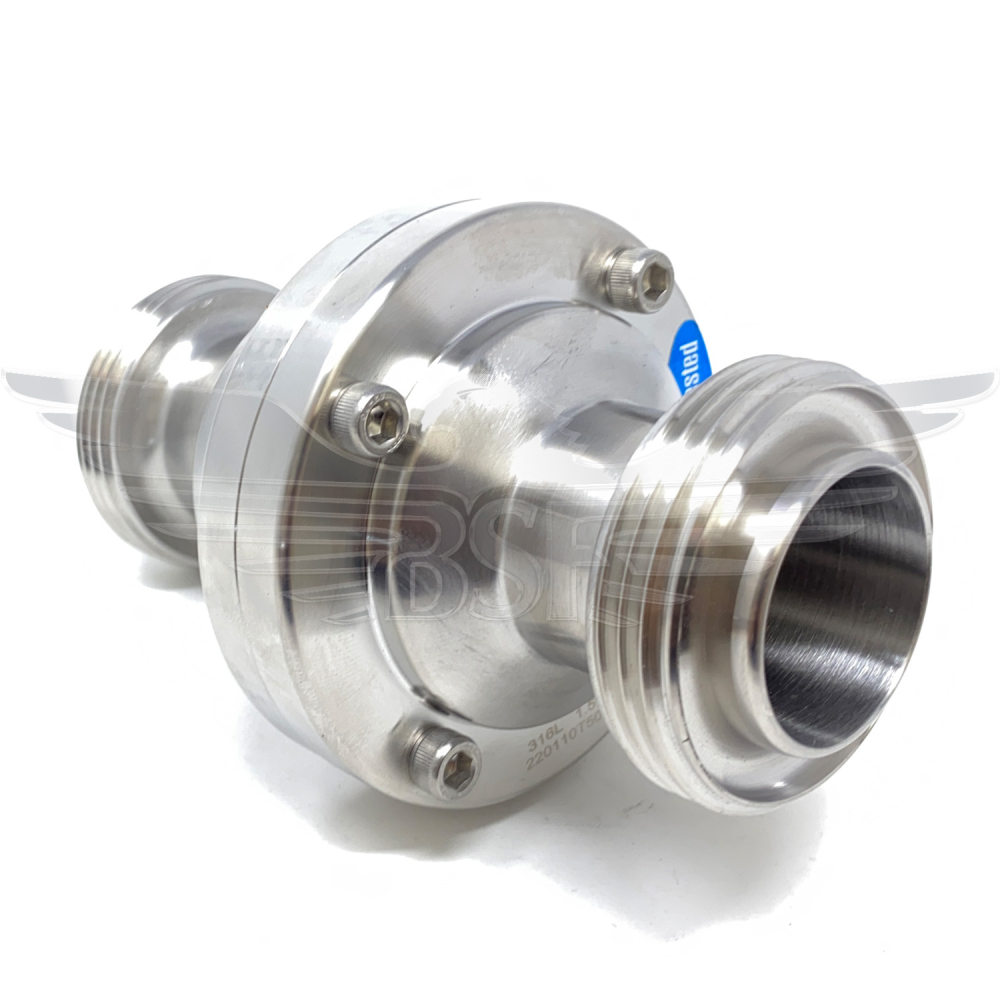

2Inch RJT M/M NON RETURN VALVE 316 C/W EPDM SEAL
RJT M/M Non Return Valve
RJT M/M Non Return Valve 2
RJT M/M Non Return Valve 3

2" RJT M/M NON RETURN VALVE 316 C/W EPDM SEAL


Stock Code: 2200220
In Stock
£106.88

Descriptions

  • Fabricated to order - 2" RJT Male x Male Non Return Valve.
  • Grade 316 body, piston & spring.
  • EPDM body & piston seal.
  • Max Pressure – 150psi / 10bar.
  • Spare seal kits c/w spring, available ex-stock.
  • Alternative ends can be welded on request.

For overall length dimension, please see below data sheet. Take dims C & D, then add on length of RJT Male (27mm) x 2 = (C+D+27+27=)



Size2"
Grade316/L
Product GroupNon Return Valve
Standard3A/RJT
Seal MaterialEPDM
Seal ColourBlack
FinishMachined
Open Pressure0.6 PSI

Click on any of the following links to download the file.
